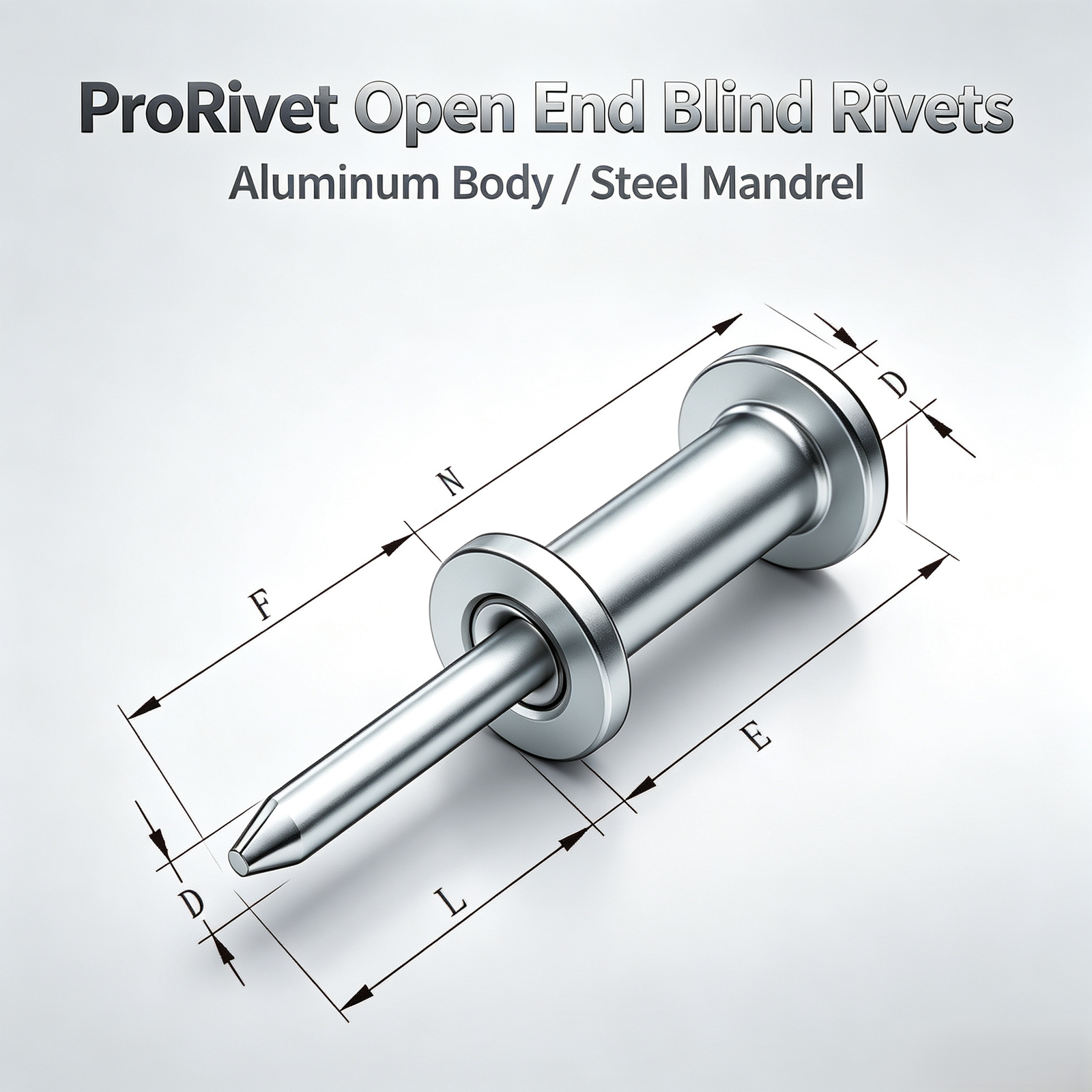

Open End Blind Rivets (Aluminum Body / Steel Mandrel）

1. Key Product Highlights

Fast Local Delivery: In stock and ready to ship directly from our Wheeling, Illinois warehouse (2302 Foster Ave. Wheeling, IL 60090).
High Strength & Reliability: Premium 5005/5052 grade aluminum alloy body paired with high-tensile carbon steel mandrel for exceptional sheer and tensile performance.
Versatile Applications: Ideal for sheet metal fabrication, automotive repair, HVAC systems, trailers, and general industrial assembly.
Standard Industry Compliance: Fully compliant with Industrial Fasteners Institute (IFI-114) standards.
Head Styles Available: Standard Dome Head (for general use) and Countersunk 120° Head (for flush surface finishes).

2. How to Read Part Numbers

Part Number System Breakdown (e.g., ADS41 / ADS-04-01)

A: Body Material — Aluminum

S: Mandrel Material — Steel

First Digit (Diameter): Expressed in 1/32″: #4 = 4/32″ (1/8″ / 3.2mm), #5 = 5/32″ (4.0mm), #6 = 6/32″ (3/16″ / 4.8mm), #8 = 8/32″ (1/4″ / 6.4mm).

Second Digit (Grip Range): Expressed in 1/16″ max grip length: #1 = 1/16″ (1.6mm), #2 = 2/16″ (1/8″ / 3.2mm), #4 = 4/16″ (1/4″ / 6.4mm), etc.

Note: Countersunk Head versions replace “D” with “K” (e.g., AKS42).

3. Technical Specifications Table

🔹 Dome Head Style

Item Code	Body Dia (D)	Hole Size	Grip Range	Body Length (L)	Head Dia (H)	Head Thick (E)	Wire Dia (W)	Stem Length (N)	Min Shear (Lbs)	Min Tensile (Lbs)
ADS32	3/32″ (2.4mm)	.096 – .100	.031 – .125	.250″ (6.4mm)	.190″ (4.8mm)	.032″ (0.8mm)	.057″ (1.45mm)	1.00″ (25.4mm)	120	150
ADS34	3/32″ (2.4mm)	.096 – .100	.126 – .250	.375″ (9.5mm)	.190″ (4.8mm)	.032″ (0.8mm)	.057″ (1.45mm)	1.00″ (25.4mm)	120	150
ADS41	1/8″ (3.2mm)	.129 – .133	.020 – .062	.212″ (5.4mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS42	1/8″ (3.2mm)	.129 – .133	.063 – .125	.275″ (7.0mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS43	1/8″ (3.2mm)	.129 – .133	.126 – .187	.337″ (8.6mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS44	1/8″ (3.2mm)	.129 – .133	.188 – .250	.400″ (10.2mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS46	1/8″ (3.2mm)	.129 – .133	.251 – .375	.525″ (13.3mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS48	1/8″ (3.2mm)	.129 – .133	.376 – .500	.650″ (16.5mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS52	5/32″ (4.0mm)	.160 – .164	.063 – .125	.300″ (7.6mm)	.312″ (7.9mm)	.050″ (1.3mm)	.095″ (2.41mm)	1.06″ (27.0mm)	260	350
ADS54	5/32″ (4.0mm)	.160 – .164	.126 – .250	.425″ (10.8mm)	.312″ (7.9mm)	.050″ (1.3mm)	.095″ (2.41mm)	1.06″ (27.0mm)	260	350
ADS56	5/32″ (4.0mm)	.160 – .164	.251 – .375	.550″ (14.0mm)	.312″ (7.9mm)	.050″ (1.3mm)	.095″ (2.41mm)	1.06″ (27.0mm)	260	350
ADS62	3/16″ (4.8mm)	.192 – .196	.063 – .125	.312″ (7.9mm)	.375″ (9.5mm)	.060″ (1.5mm)	.114″ (2.90mm)	1.06″ (27.0mm)	380	500
ADS64	3/16″ (4.8mm)	.192 – .196	.126 – .250	.437″ (11.1mm)	.375″ (9.5mm)	.060″ (1.5mm)	.114″ (2.90mm)	1.06″ (27.0mm)	380	500
ADS66	3/16″ (4.8mm)	.192 – .196	.251 – .375	.562″ (14.3mm)	.375″ (9.5mm)	.060″ (1.5mm)	.114″ (2.90mm)	1.06″ (27.0mm)	380	500
ADS68	3/16″ (4.8mm)	.192 – .196	.376 – .500	.687″ (17.4mm)	.375″ (9.5mm)	.060″ (1.5mm)	.114″ (2.90mm)	1.06″ (27.0mm)	380	500
ADS84	1/4″ (6.4mm)	.257 – .261	.126 – .250	.500″ (12.7mm)	.500″ (12.7mm)	.080″ (2.0mm)	.151″ (3.84mm)	1.25″ (31.8mm)	700	950
ADS86	1/4″ (6.4mm)	.257 – .261	.251 – .375	.625″ (15.9mm)	.500″ (12.7mm)	.080″ (2.0mm)	.151″ (3.84mm)	1.25″ (31.8mm)	700	950

🔹 Countersunk 120° Head Style

Item Code	Body Dia (D)	Hole Size	Grip Range	Body Length (L)	Head Dia (H)	Min Shear (Lbs)	Min Tensile (Lbs)
AKS42	1/8″ (3.2mm)	.129 – .133	.063 – .125	.300″ (7.6mm)	.225″ (5.7mm)	170	220
AKS44	1/8″ (3.2mm)	.129 – .133	.188 – .250	.425″ (10.8mm)	.225″ (5.7mm)	170	220
AKS64	3/16″ (4.8mm)	.192 – .196	.126 – .250	.462″ (11.7mm)	.350″ (8.9mm)	380	500
AKS66	3/16″ (4.8mm)	.192 – .196	.251 – .375	.587″ (14.9mm)	.350″ (8.9mm)	380	500

4. Packaging Options & Wholesale Ordering

Standard Box: 100 Pcs / Box
Bulk Master Carton: 10,000 Pcs / Carton
Custom Packaging: Available upon request for Distributors and OEMs.
Volume Discounts: Tiered pricing available online for orders over 5 Cartons, 20 Cartons, and Pallet loads.
Request a Quote: Need custom quantities or Net-30 Terms? [Click Here to Submit an RFQ]

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Click to enlarge

Open End Blind Rivets, Aluminum Body / Steel Mandrel – Dome & Countersunk Head

Price range: $11.76 through $128.76

Weight	N/A
Dimensions	N/A
Material	Aluminum / Steel
Head	Domed Head, Large Flange Head, Countersunk Head (120°)
Nominal Body Diameter (D)	(#03)–2.4mm (3/32″), (#04)–3.2mm (1/8″), (#05)–4.0mm (5/32″), (#06)–4.8mm (3/16″), (#08)–6.4mm (1/4″)
Grip Range	(#02)–0.8–3.2mm (.020-.125″), (#04)–3.3–6.4mm (.126-.250″), (#06)–6.5–9.5mm (.251-.375″), (#08)–9.6–12.7mm (.376-.500″), (#10)–12.8–15.9mm (.501-.625″), (#12)–16.0–19.1mm (.626-.750″), (#14)–19.1–22.2mm (.751-.875″), (#16)–22.3–25.4mm (.876-1.000″)

Nominal Body Diameter (D)

Grip Range

SKU: N/A Category: Open End Rivets

Description

Item Code	Body Dia (D)	Hole Size	Grip Range	Body Length (L)	Head Dia (H)	Head Thick (E)	Wire Dia (W)	Stem Length (N)	Min Shear (Lbs)	Min Tensile (Lbs)
ADS32	3/32″ (2.4mm)	.096 – .100	.031 – .125	.250″ (6.4mm)	.190″ (4.8mm)	.032″ (0.8mm)	.057″ (1.45mm)	1.00″ (25.4mm)	120	150
ADS34	3/32″ (2.4mm)	.096 – .100	.126 – .250	.375″ (9.5mm)	.190″ (4.8mm)	.032″ (0.8mm)	.057″ (1.45mm)	1.00″ (25.4mm)	120	150
ADS41	1/8″ (3.2mm)	.129 – .133	.020 – .062	.212″ (5.4mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS42	1/8″ (3.2mm)	.129 – .133	.063 – .125	.275″ (7.0mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS43	1/8″ (3.2mm)	.129 – .133	.126 – .187	.337″ (8.6mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS44	1/8″ (3.2mm)	.129 – .133	.188 – .250	.400″ (10.2mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS46	1/8″ (3.2mm)	.129 – .133	.251 – .375	.525″ (13.3mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS48	1/8″ (3.2mm)	.129 – .133	.376 – .500	.650″ (16.5mm)	.250″ (6.3mm)	.040″ (1.0mm)	.076″ (1.93mm)	1.00″ (25.4mm)	170	220
ADS52	5/32″ (4.0mm)	.160 – .164	.063 – .125	.300″ (7.6mm)	.312″ (7.9mm)	.050″ (1.3mm)	.095″ (2.41mm)	1.06″ (27.0mm)	260	350
ADS54	5/32″ (4.0mm)	.160 – .164	.126 – .250	.425″ (10.8mm)	.312″ (7.9mm)	.050″ (1.3mm)	.095″ (2.41mm)	1.06″ (27.0mm)	260	350
ADS56	5/32″ (4.0mm)	.160 – .164	.251 – .375	.550″ (14.0mm)	.312″ (7.9mm)	.050″ (1.3mm)	.095″ (2.41mm)	1.06″ (27.0mm)	260	350
ADS62	3/16″ (4.8mm)	.192 – .196	.063 – .125	.312″ (7.9mm)	.375″ (9.5mm)	.060″ (1.5mm)	.114″ (2.90mm)	1.06″ (27.0mm)	380	500
ADS64	3/16″ (4.8mm)	.192 – .196	.126 – .250	.437″ (11.1mm)	.375″ (9.5mm)	.060″ (1.5mm)	.114″ (2.90mm)	1.06″ (27.0mm)	380	500
ADS66	3/16″ (4.8mm)	.192 – .196	.251 – .375	.562″ (14.3mm)	.375″ (9.5mm)	.060″ (1.5mm)	.114″ (2.90mm)	1.06″ (27.0mm)	380	500
ADS68	3/16″ (4.8mm)	.192 – .196	.376 – .500	.687″ (17.4mm)	.375″ (9.5mm)	.060″ (1.5mm)	.114″ (2.90mm)	1.06″ (27.0mm)	380	500
ADS84	1/4″ (6.4mm)	.257 – .261	.126 – .250	.500″ (12.7mm)	.500″ (12.7mm)	.080″ (2.0mm)	.151″ (3.84mm)	1.25″ (31.8mm)	700	950
ADS86	1/4″ (6.4mm)	.257 – .261	.251 – .375	.625″ (15.9mm)	.500″ (12.7mm)	.080″ (2.0mm)	.151″ (3.84mm)	1.25″ (31.8mm)	700	950

Item Code	Body Dia (D)	Hole Size	Grip Range	Body Length (L)	Head Dia (H)	Min Shear (Lbs)	Min Tensile (Lbs)
AKS42	1/8″ (3.2mm)	.129 – .133	.063 – .125	.300″ (7.6mm)	.225″ (5.7mm)	170	220
AKS44	1/8″ (3.2mm)	.129 – .133	.188 – .250	.425″ (10.8mm)	.225″ (5.7mm)	170	220
AKS64	3/16″ (4.8mm)	.192 – .196	.126 – .250	.462″ (11.7mm)	.350″ (8.9mm)	380	500
AKS66	3/16″ (4.8mm)	.192 – .196	.251 – .375	.587″ (14.9mm)	.350″ (8.9mm)	380	500
