300 Series Stainless Steel Pop Rivets – Domed, Large Flange & Countersunk 120° | High Corrosion Resistance Fasteners
价格范围：$44.40 至 $392.05
| 重量 | N/A |
|---|---|
| 尺寸 | N/A |
| Material | Stainless Body / Stainless Mandrel |
| Head | Domed Head (SSDSS Series), Large Flange Head (SSDSSLF Series), Countersunk Head 120° (SSKSS Series) |
| Nominal Body Diameter (D) | (#04)-3.2mm (1/8″), (#05)-4.0mm (5/32″), (#06)-4.8mm(3/16″), (#08)-6.4mm (1/4″) |
| Grip Range | (#02)-0.8-3.2mm (.020-.125″), (#04)-3.3-6.4mm (.126-.250″), (#06)-6.5-9.5mm (.251-.375″), (#08)-9.6-12.7mm (.376-.500″), (#10)-12.8-15.9mm (.501-.625″), (#12)-16.0-19.1mm (.626-.750″), (#14)-19.1-22.2mm (.751-.875″), (#16)-22.3-25.4mm (.876-1.000″) |
1. Product Overview & Key Specifications

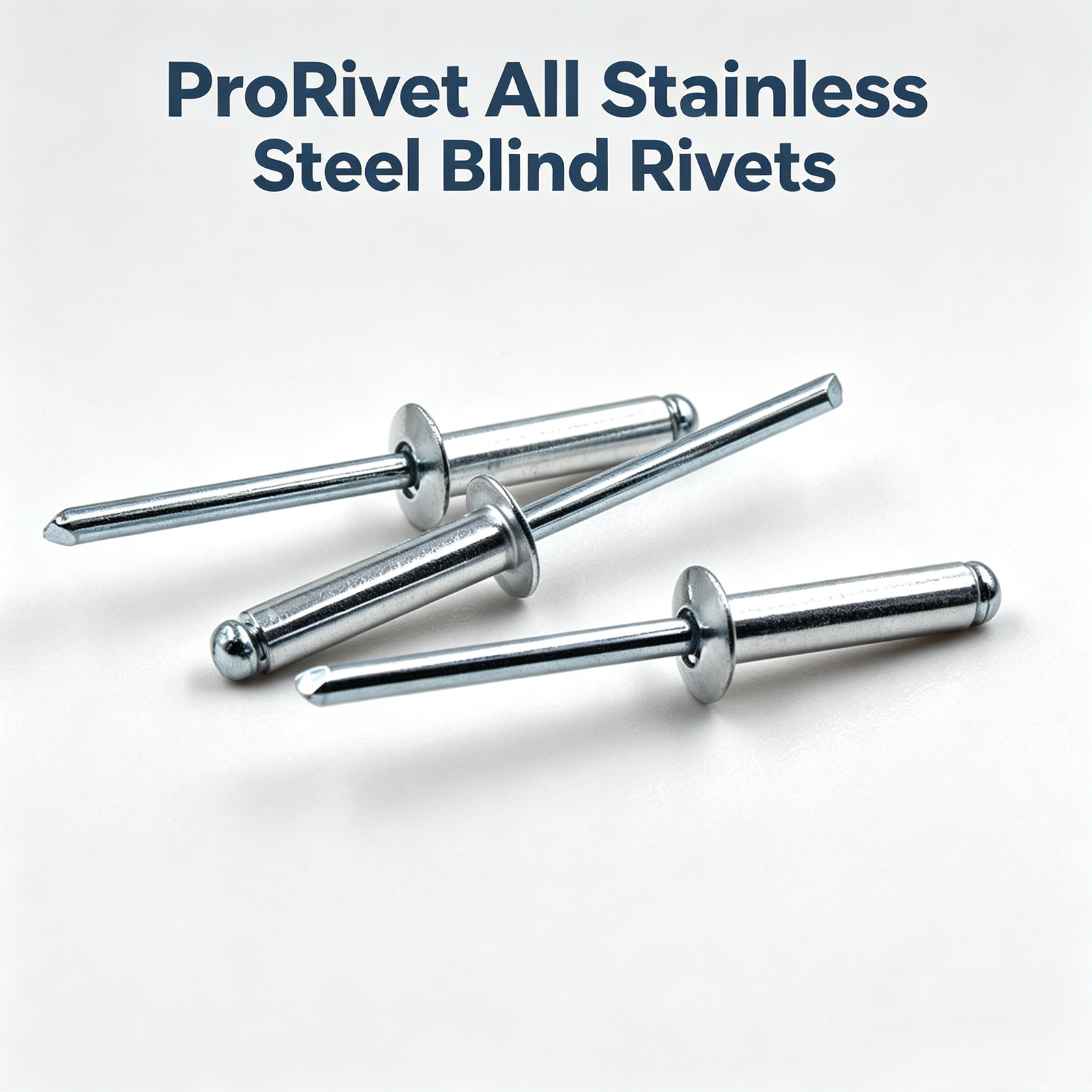

ProRivet 300 Series All Stainless Steel Blind Rivets are engineered for harsh environments requiring extreme corrosion resistance and high structural clamping force. Built with both a 300 Series Stainless Steel body and mandrel, these fasteners offer significantly higher shear and tensile capacities than aluminum alternatives—up to 1,700 lbs shear and 2,100 lbs tensile capacity for 1/4″ diameters.
-
Head Styles Available: Domed Head (SSDSS), Large Flange Head (SSDSSLF), and 120° Countersunk Head (SSKSS).
-
Superior Material Grade: 300 Series Stainless Steel body and mandrel prevent bimetallic corrosion and endure chemical, marine, and high-moisture exposure.
-
Standards Compliance: Precision engineered to conform with IFI-114 standards for blind fasteners.
-
Local Inventory & Shipping: In stock and shipped directly from ProRivet’s facility in Wheeling, IL (60090).
2. How to Read Part Numbers (Part Numbering Rules)
Part Number Example: SSDSS-04-04 / SSDSSLF-06-08 / SSKSS-04-02
[SSDSS] = Stainless Body / Stainless Mandrel - Domed Head
[SSDSSLF] = Stainless Body / Stainless Mandrel - Large Flange Head
[SSKSS] = Stainless Body / Stainless Mandrel - Countersunk 120° Head
[-04-] = Diameter in 1/32": -04- = 4/32" (1/8"), -06- = 6/32" (3/16")
[-04] = Max Grip Length in 1/16": -04 = 4/16" (1/4"), -08 = 8/16" (1/2")
3. Technical Specifications Table
🔹 Domed Head (SSDSS Series)
| Part Number | Nominal Dia (D) | Body Dia (D) | Grip Range (Min – Max) | Hole Size & Drill No. | Body Length MAX (L) | Overall Length MAX (F) | Minimum Mandrel Protrusion (N) | Mandrel Dia (W) | Flange Dia (H) | Flange Thick (Ref)(E) | Typical Shear Min Lbs. | Typical Tensile Min Lbs. |
| SSDSS-03-02 | 3/32″ | 0.094 | 0.031 – 0.125 | .097-.100 #41 | 0.225 | 0.325 | 1.00 | 0.057 | 0.188 ±.010 | 0.028 | 360 | 280 |
| SSDSS-03-04 | 3/32″ | 0.094 | 0.126 – 0.250 | .097-.100 #41 | 0.335 | 0.435 | 1.00 | 0.057 | 0.188 ±.011 | 0.028 | 360 | 280 |
| SSDSS-04-02 | 1/8″ | 0.125 | 0.063 – 0.125 | .129-.133 #30 | 0.250 | 0.350 | 1.00 | 0.076 | 0.250 ±.012 | 0.036 | 420 | 530 |
| SSDSS-04-03 | 1/8″ | 0.125 | 0.126 – 0.187 | .129-.133 #30 | 0.313 | 0.413 | 1.00 | 0.076 | 0.250 ±.012 | 0.036 | 420 | 530 |
| SSDSS-04-04 | 1/8″ | 0.125 | 0.188 – 0.250 | .129-.133 #30 | 0.375 | 0.475 | 1.00 | 0.076 | 0.250 ±.012 | 0.036 | 420 | 530 |
| SSDSS-04-06 | 1/8″ | 0.125 | 0.313 – 0.375 | .129-.133 #30 | 0.500 | 0.600 | 1.00 | 0.076 | 0.250 ±.012 | 0.036 | 420 | 530 |
| SSDSS-04-08 | 1/8″ | 0.125 | 0.376 – 0.500 | .129-.133 #30 | 0.625 | 0.725 | 1.00 | 0.076 | 0.250 ±.012 | 0.036 | 420 | 530 |
| SSDSS-05-02 | 5/32″ | 0.156 | 0.020 – 0.125 | .160-.164 #20 | 0.275 | 0.415 | 1.06 | 0.095 | 0.312 ±.016 | 0.043 | 650 | 820 |
| SSDSS-05-04 | 5/32″ | 0.156 | 0.188 – 0.250 | .160-.164 #20 | 0.400 | 0.540 | 1.06 | 0.095 | 0.312 ±.016 | 0.043 | 650 | 820 |
| SSDSS-05-06 | 5/32″ | 0.156 | 0.251 – 0.375 | .160-.164 #20 | 0.525 | 0.665 | 1.06 | 0.095 | 0.312 ±.016 | 0.043 | 650 | 820 |
| SSDSS-06-02 | 3/16″ | 0.188 | 0.020 – 0.125 | .192-.196 #11 | 0.300 | 0.460 | 1.06 | 0.114 | 0.375 ±.019 | 0.053 | 950 | 1200 |
| SSDSS-06-04 | 3/16″ | 0.188 | 0.188 – 0.250 | .192-.196 #11 | 0.425 | 0.585 | 1.06 | 0.114 | 0.375 ±.019 | 0.053 | 950 | 1200 |
| SSDSS-06-06 | 3/16″ | 0.188 | 0.251 – 0.375 | .192-.196 #11 | 0.550 | 0.710 | 1.06 | 0.114 | 0.375 ±.019 | 0.053 | 950 | 1200 |
| SSDSS-06-08 | 3/16″ | 0.188 | 0.376 – 0.500 | .192-.196 #11 | 0.675 | 0.835 | 1.06 | 0.114 | 0.375 ±.019 | 0.053 | 950 | 1200 |
| SSDSS-08-04 | 1/4″ | 0.250 | 0.126 – 0.250 | .257-.261 F | 0.475 | 0.655 | 1.25 | 0.151 | 0.500 ±.025 | 0.069 | 1700 | 2100 |
| SSDSS-08-06 | 1/4″ | 0.250 | 0.251 – 0.375 | .257-.261 F | 0.600 | 0.780 | 1.25 | 0.151 | 0.500 ±.025 | 0.069 | 1700 | 2100 |
| SSDSS-08-08 | 1/4″ | 0.250 | 0.376 – 0.500 | .257-.261 F | 0.725 | 0.905 | 1.25 | 0.151 | 0.500 ±.025 | 0.069 | 1700 | 2100 |
| SSDSS-08-10 | 1/4″ | 0.250 | 0.501 – 0.625 | .257-.261 F | 0.850 | 1.030 | 1.25 | 0.151 | 0.500 ±.025 | 0.069 | 1700 | 2100 |
| SSDSS-08-12 | 1/4″ | 0.250 | 0.626 – 0.750 | .257-.261 F | 0.975 | 1.155 | 1.25 | 0.151 | 0.500 ±.025 | 0.069 | 1700 | 2100 |
| SSDSS-08-16 | 1/4″ | 0.250 | 0.876 – 1.000 | .257-.261 F | 1.225 | 1.405 | 1.25 | 0.151 | 0.500 ±.025 | 0.069 | 1700 | 2100 |
🔹 Large Flange Head (SSDSSLF Series)
| Part Number | Nominal Dia (D) | Body Dia (D) | Grip Range (Min – Max) | Hole Size & Drill No. | Body Length MAX (L) | Overall Length MAX (F) | Minimum Mandrel Protrusion (N) | Mandrel Dia (W) | Flange Dia (H) | Flange Thick (Ref)(E) | Typical Shear Min Lbs. | Typical Tensile Min Lbs. |
| SSDSSLF-04-02 | 1/8″ | 0.125 | 0.063 – 0.125 | .129-.133 #30 | 0.250 | 0.370 | 1.00 | 0.076 | 0.375 ±.015 | 0.065 | 420 | 530 |
| SSDSSLF-04-03 | 1/8″ | 0.125 | 0.126 – 0.187 | .129-.133 #30 | 0.313 | 0.433 | 1.00 | 0.076 | 0.375 ±.015 | 0.065 | 420 | 530 |
| SSDSSLF-04-04 | 1/8″ | 0.125 | 0.188 – 0.250 | .129-.133 #30 | 0.375 | 0.495 | 1.00 | 0.076 | 0.375 ±.015 | 0.065 | 420 | 530 |
| SSDSSLF-06-04 | 3/16″ | 0.188 | 0.188 – 0.250 | .192-.196 #11 | 0.425 | 0.585 | 1.06 | 0.114 | 0.625 ±.025 | 0.092 | 950 | 1200 |
| SSDSSLF-06-06 | 3/16″ | 0.188 | 0.251 – 0.375 | .192-.196 #11 | 0.550 | 0.710 | 1.06 | 0.114 | 0.625 ±.025 | 0.092 | 950 | 1200 |
| SSDSSLF-06-08 | 3/16″ | 0.188 | 0.376 – 0.500 | .192-.196 #11 | 0.675 | 0.835 | 1.06 | 0.114 | 0.625 ±.025 | 0.092 | 950 | 1200 |
| SSDSSLF-06-10 | 3/16″ | 0.188 | 0.501 – 0.625 | .192-.196 #11 | 0.800 | 0.960 | 1.06 | 0.114 | 0.625 ±.025 | 0.092 | 950 | 1200 |
| SSDSSLF-06-12 | 3/16″ | 0.188 | 0.626 – 0.750 | .192-.196 #11 | 0.925 | 1.085 | 1.06 | 0.114 | 0.625 ±.025 | 0.092 | 950 | 1200 |
| SSDSSLF-06-16 | 3/16″ | 0.188 | 0.876 – 1.000 | .192-.196 #11 | 1.175 | 1.335 | 1.06 | 0.114 | 0.625 ±.025 | 0.092 | 950 | 1200 |
🔹 Countersunk Head 120° (SSKSS Series)
| Part Number | Nominal Dia (D) | Body Dia (D) | Grip Range (Min – Max) | Hole Size & Drill No. | Body Length MAX (L) | Overall Length MAX (F) | Minimum Mandrel Protrusion (N) | Mandrel Dia (W) | Flange Dia (H) | Flange Thick (Ref)(E) | Typical Shear Min Lbs. | Typical Tensile Min Lbs. |
| SSKSS-03-02 | 3/32″ | 0.094 | 0.079 – 0.125 | .097-.100 #41 | 0.225 | 0.325 | 1.00 | 0.057 | 0.174 ±.013 | 0.027 | 360 | 280 |
| SSKSS-04-02 | 1/8″ | 0.125 | 0.092 – 0.125 | .129-.133 #30 | 0.250 | 0.370 | 1.00 | 0.076 | 0.220 ±.013 | 0.051 | 420 | 530 |
| SSKSS-04-03 | 1/8″ | 0.125 | 0.126 – 0.187 | .129-.133 #30 | 0.313 | 0.433 | 1.00 | 0.076 | 0.220 ±.013 | 0.051 | 420 | 530 |
| SSKSS-04-04 | 1/8″ | 0.125 | 0.188 – 0.250 | .129-.133 #30 | 0.375 | 0.495 | 1.00 | 0.076 | 0.220 ±.013 | 0.051 | 420 | 530 |
5. FAQ Content
Q: Why use 300 Series All-Stainless Steel blind rivets instead of aluminum or steel rivets?
A: 300 Series Stainless Steel provides maximum resistance to salt water, harsh chemicals, and atmospheric corrosion. Using a stainless body paired with a stainless mandrel eliminates galvanic corrosion risks between different metals and offers significantly higher shear (up to 1,700 Lbs) and tensile strengths (up to 2,100 Lbs).
Q: When should I choose Large Flange Stainless Steel blind rivets (SSDSSLF)?
A: Large Flange rivets (SSDSSLF Series) feature an expanded head diameter (e.g., 0.625″ on 3/16″ body) to distribute load over a broader surface area. This prevents pull-through or cracking when fastening soft materials (plastics, fiberglass, thin sheet metal) to structural steel frames.
